Detailed Description

  • YG026D fabric strength machine

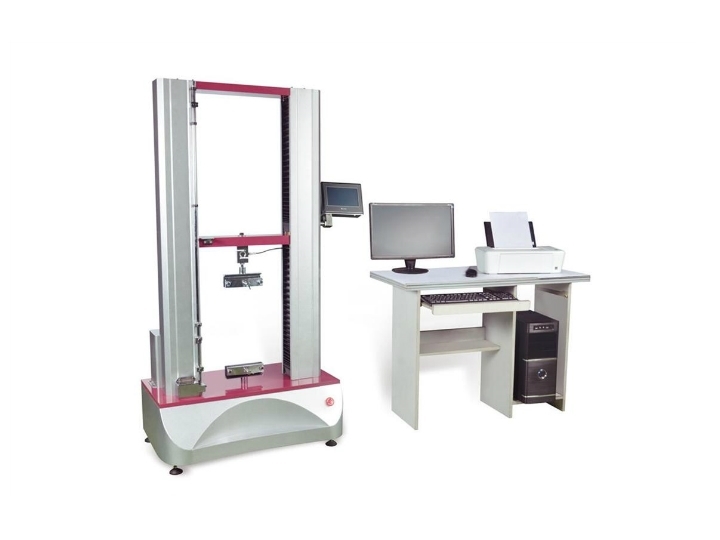

YG026D fabric strength machine

Key words:YG026D fabric strength machine
Category:Strength machine
Product Description:【Scope of application】YG026D fabric strength machine is used to detect the breaking strength and breaking elongation of cotton, wool, linen, silk and other woven fabrics, as well as fabrics produced by other technologies, industrial fabrics, non-woven fa…
Order online
Product Details Photo Gallery

【Scope of application】
YG026D fabric strength machine is used to detect the breaking strength and breaking elongation of cotton, wool, linen, silk and other woven fabrics, as well as fabrics produced by other technologies, industrial fabrics, non-woven fabrics, and coated fabrics. Changing the fixture can complete functions such as tearing, peeling, and bursting.

【Standards compliant】
GB/T 3923.1, GB/T19976, GB/T3917.2, GB/T3917.3. GBT 3917.4 FZ/T70006, GBT 13773.1, FZ/T80007.1, GBT 13772.1

[Instrument features]
1. It adopts double-pillar gantry bracket structure, beautiful appearance and stable operation.
2. Using high-precision load cell, the test data is accurate.
3. Controller: computer control, strong anti-interference ability, fast speed, sampling rate ≥1000 times/sec; and can process curves and reports at the same time (powerful measurement software is compatible with Windows XP or Windows 7 32-bit operating system).
4. Display features: Dynamic tracking (monitoring) of the curve during the test, automatic scaling of curve coordinates, and simultaneous tracking and display of reports and curves.
5. Operating software: Chinese, English, Chinese traditional and other multi-language software can be customized.
6. Operating features: easy to operate, you can customize the sample name, batch number, test times, operator name and other information.
7. It can save the test data and results, has the necessary functions such as curve display, query, etc., the test speed is continuously adjustable, and the sample is broken and automatically stops and returns.
8. The load cell and clamping distance can be calibrated independently.
9. The test report can be exported to various file formats such as Excel, Word, PDF, etc., which is convenient for customers to conduct laboratory network comparison and evaluation.

[Instrument performance and main technical parameters]
1. Test method: CRE principle measurement, computer software control operation, and record dynamic changes of the curve
2. Test method: stretch, tear, peel, burst, etc.
3. Tension sensor range: 50N / 100N / 200N / 500N / 1000N / 3000N / 5000N (optional according to user requirements)
4. Force measurement accuracy: ≤±1%
5. Clamping distance: 25~500mm (arbitrarily set by software)
6. Stretching speed: 1~600mm/min (arbitrarily set)
7. Recovery speed: 200mm/min
8. Effective stroke: 600mm (customizable)
9. Elongation resolution: 0.01mm
10. Effective clamping width of the holder: 100mm (standard strip method stretching fixture)
11. Print: output various forms of data, curves and statistical results
12. Power source: AC220V±10% 50Hz
13. Equipment dimensions: 800mm×480mm×1600mm
14. Weight: about 150Kg
