  • YG026B type fabric strength machine

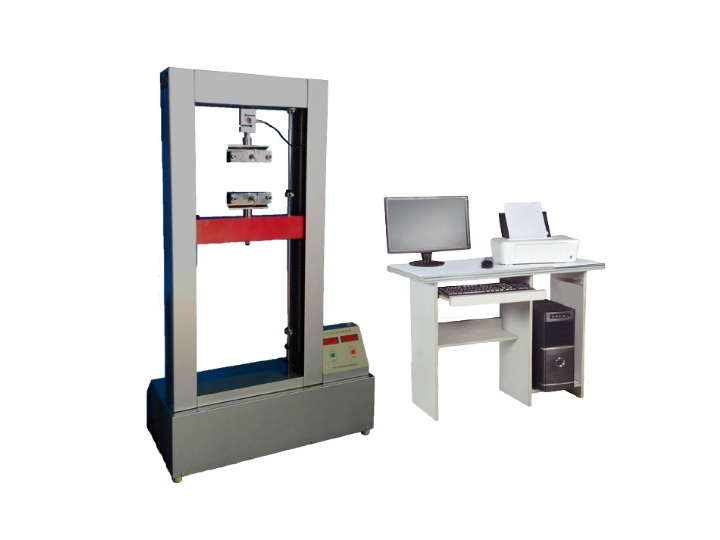

YG026B type fabric strength machine

Key words:YG026B type fabric strength machine
Category:Strength machine
Product Description:【use】YG026B fabric strength tester is used to measure the breaking strength and breaking elongation of various textiles, cotton, wool and other woven fabrics, non-woven fabrics, with stretch, burst, tear, peel, seam, tear, elasticity Functions such as re…
Order online
Product Details Photo Gallery


【use】
YG026B fabric strength tester is used to measure the breaking strength and breaking elongation of various textiles, cotton, wool and other woven fabrics, non-woven fabrics, with stretch, burst, tear, peel, seam, tear, elasticity Functions such as recovery and anti-slip.

【Standards compliant】
GB/T 3923.1, GB/T 3923.2, GB/T 3917.2, GB/T 3917.3, GB/T 3917.4, GB/T 13772.1, GB/T 13772.2 and other national standards.

[Instrument features]
1. The instrument is a utility model invention patent and invention patent (utility model invention patent certificate number: ZL: 200620073811.5), invention patent certificate number: ZL: 200610085935.X), and it has obtained a high-tech product certification (certificate number: 060404G0145N) , Has a number of patent certificates.
2. Using high-precision and high-efficiency load cell, the test data is accurate.
3. Controller: computer control, strong anti-interference ability, fast speed, sampling rate ≥1000 times/sec; and can process curves and reports at the same time (powerful measurement software is compatible with Windows XP or Windows 7 32-bit operating system).
4. Display features: Dynamic tracking (monitoring) of the curve during the test, automatic scaling of curve coordinates, and simultaneous tracking and display of reports and curves.
5. Operating software: automatic switching between Chinese and English, friendly interface.
6. Operating features: easy to operate, you can customize the sample name, batch number, test times, operator name and other information.
7. It can save the test data and results, has the necessary functions such as curve display, query, etc., the test speed is continuously adjustable, the sample is broken and automatically stops, and the peak value is maintained.
8. The test unit can be switched freely (N, pounds, kilograms, etc.).

[Instrument performance and main technical parameters]
1. Test method: CRE principle measurement, computer control, and record the dynamic change of the curve, you can choose the strength/elongation, strength/time, elongation/time curve display according to your needs.
2. Test method: stretch, burst, tear, peel, seam, tear, elastic recovery, anti-slip and other functions.
3. Tension sensor range: 100N / 200N / 500N / 1000N / 3000N / 5000N (optional)
4. Force measurement accuracy: <±1%
5. Clamping distance: 25~500mm (steplessly adjustable)
6. Stretching speed: 25~500mm/min (arbitrarily set)
7. Recovery speed: 200mm/min (speed adjustable, recommended speed: 200mm/min)
8. Effective stroke: 450mm (customizable)
9. Elongation resolution: 0.01mm
10. Effective clamping width of the gripper: standard configuration 100mm (can be customized according to user needs)
11. Print: output various forms of data, curves and statistical results
12. Power supply: AC220V±10% 50Hz
13. Equipment dimensions (length×width×height): 800mm×360mm×1350mm
14. Weight: about 150Kg
